2005 Hydra Rig Class 3 Coil Tubing Unit

2005 Hydra Rig Class 3 CTU

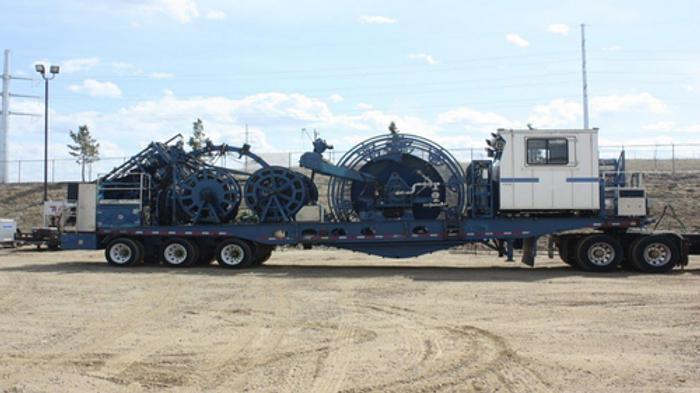

Built On a Tri-Axle Trailer, Equipped w/ (4) 11 Gallon Accumulators w/ Nitrogen Back-Up & a 680 Injector Head

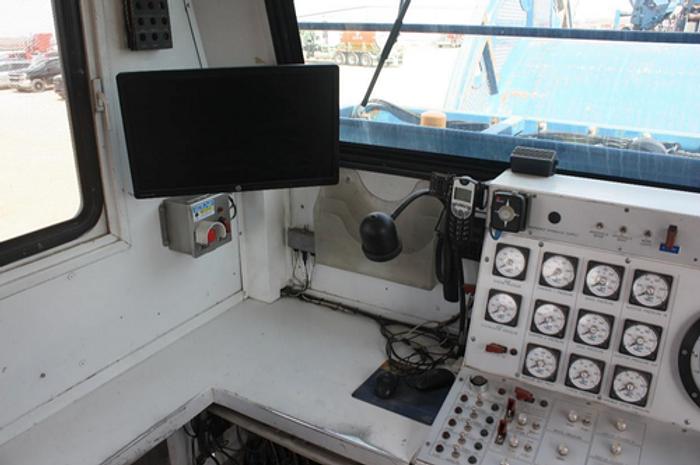

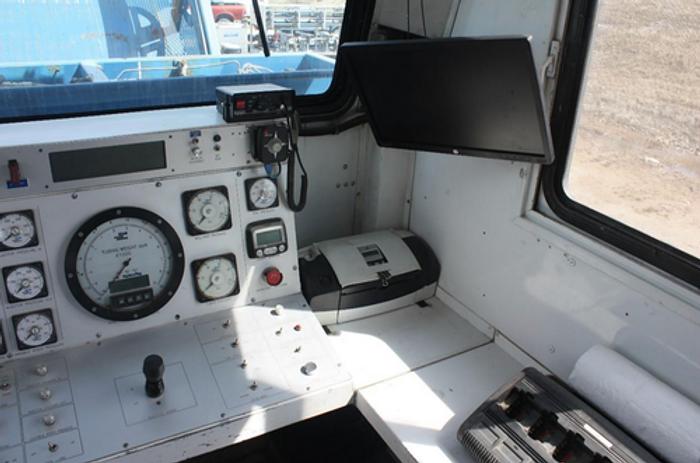

Electric Cabin Control
Climate Controlled Operators Cabin
Separate Tandem Stripper Controls from Cab
Capable of Running Controls at Rear of Unit
Applications:
Wellbore Cleanout
Acid Stimulations
Confirmation Runs
Abandonments

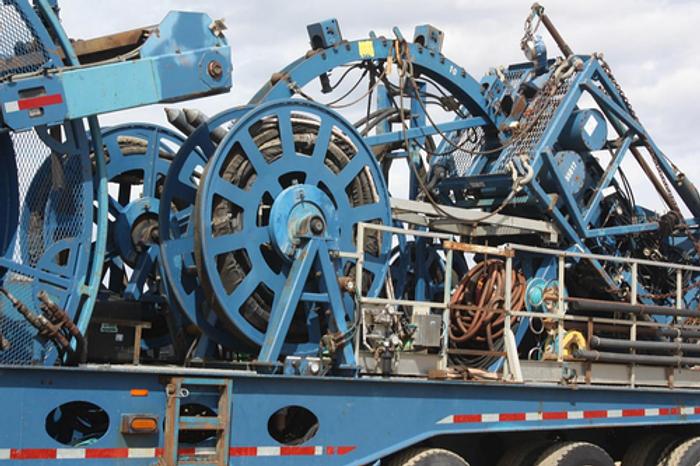

Reel Size:
Outer Flange 141"
Core 96"
Width 70"
Reel Capacity:
1 1/4" - 29000ft
1 1/2" - 20000ft
1 3/4" - 14700ft
2" - 12000ft
BOP Configuration:
4 BOP
1 Auxilary
